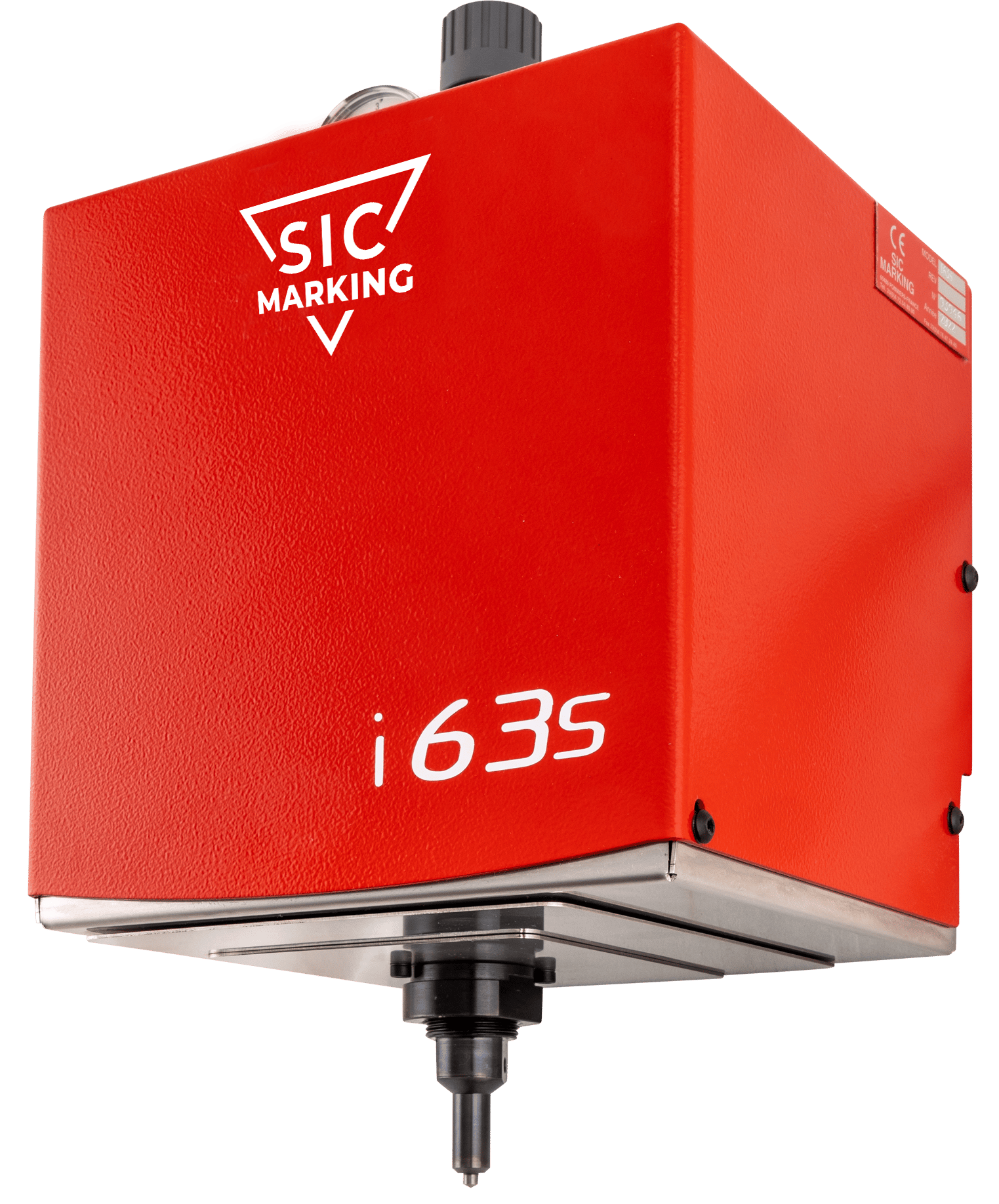

I 63S

Deep scribing
Robust structure
High speeds
Machine de marquage à intégrer sur ligne de production -
Description

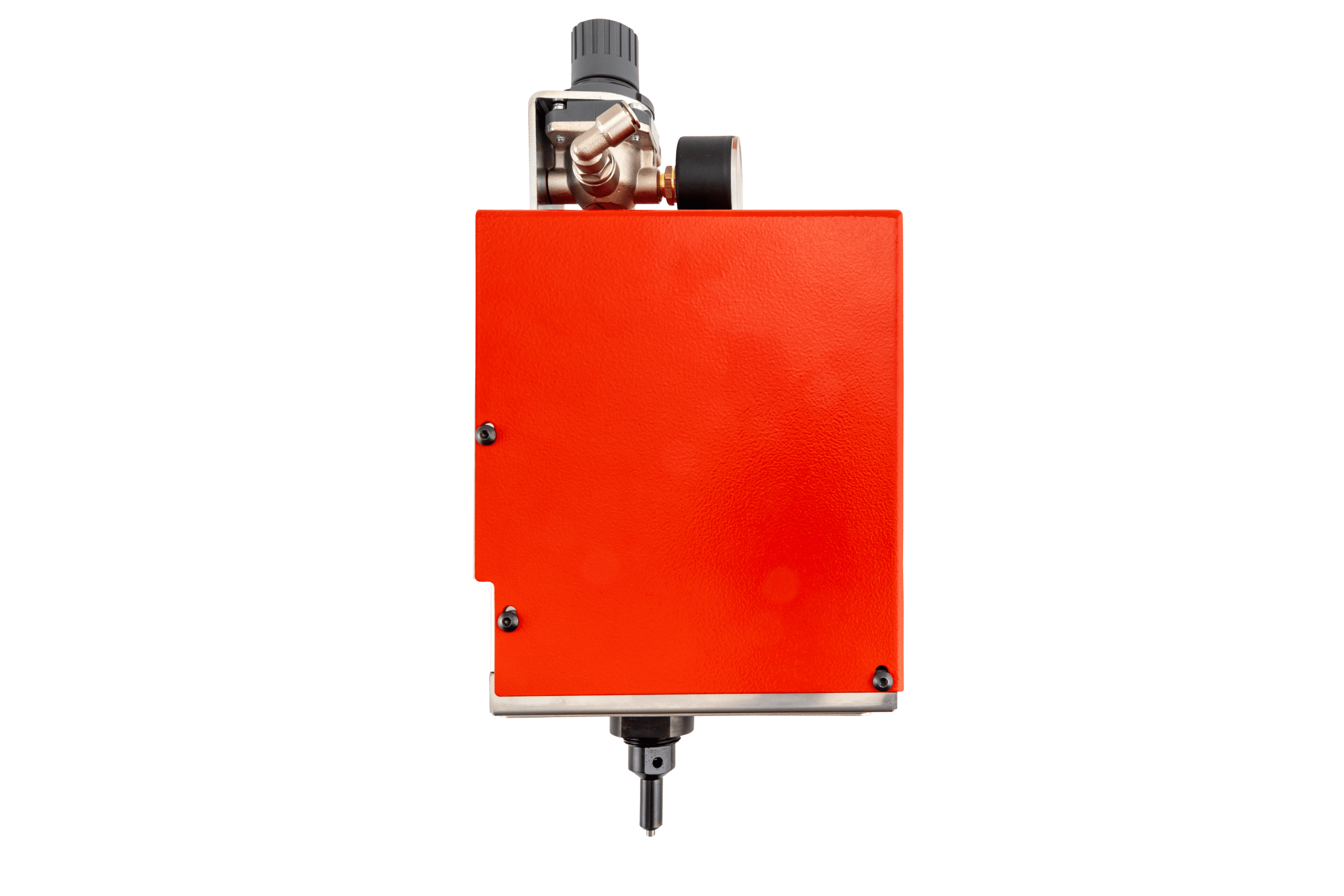

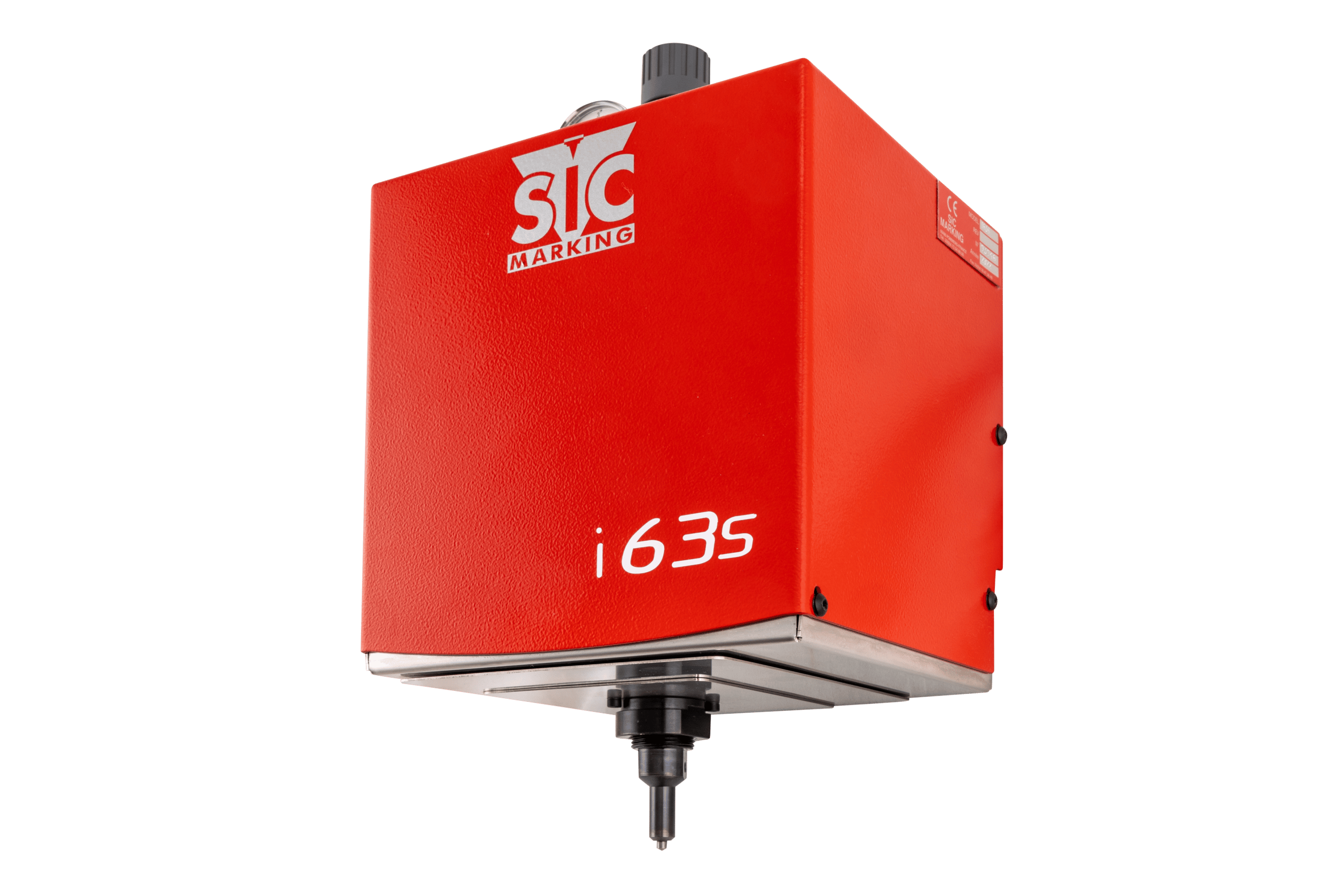

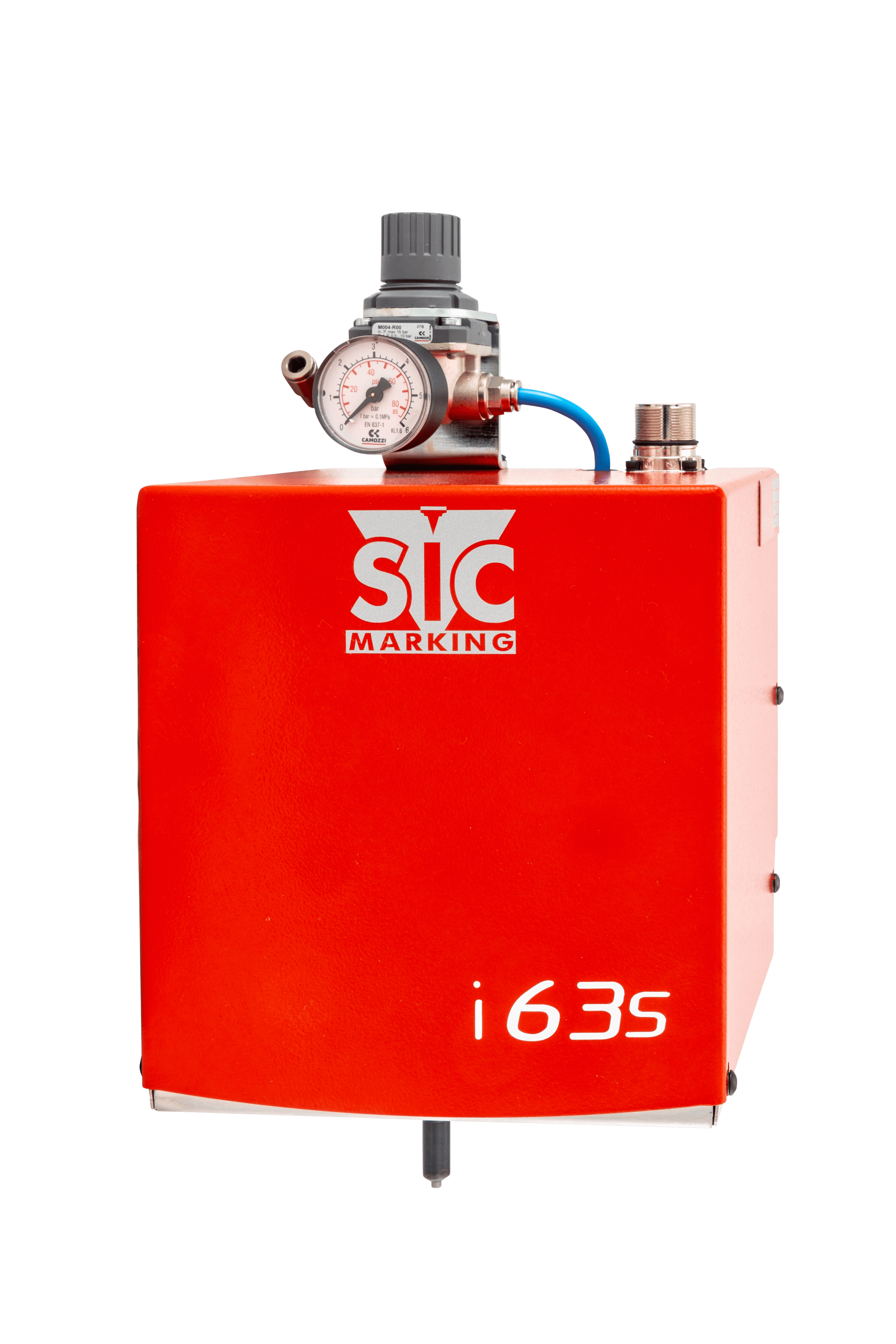

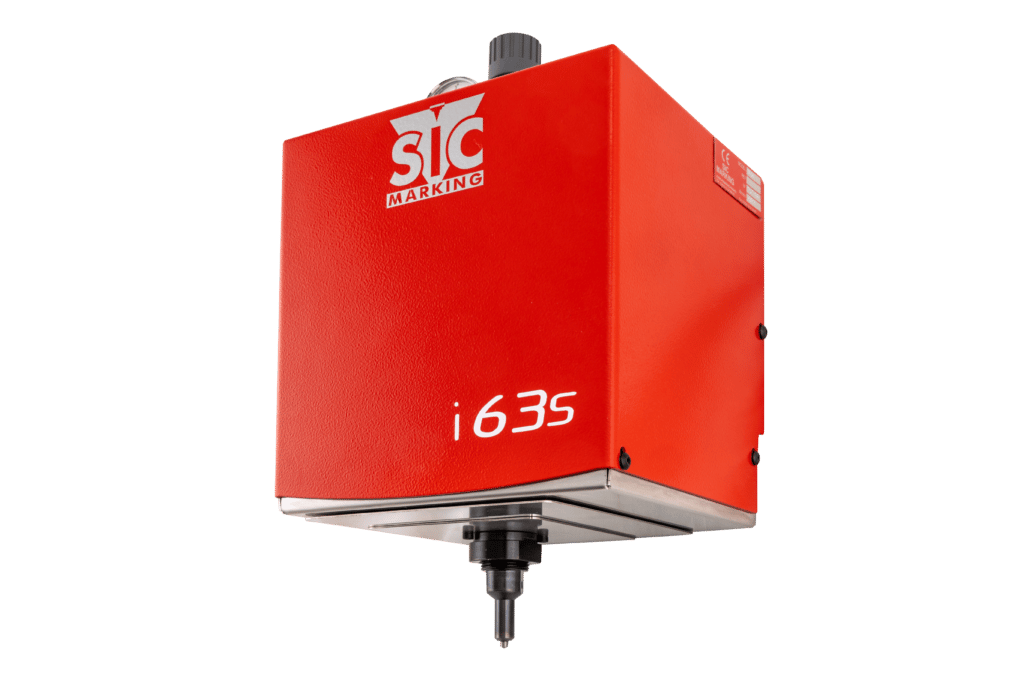

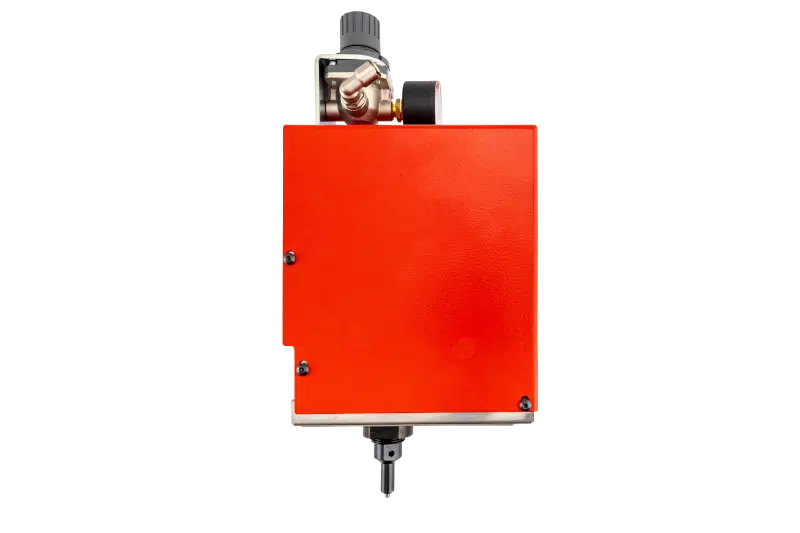

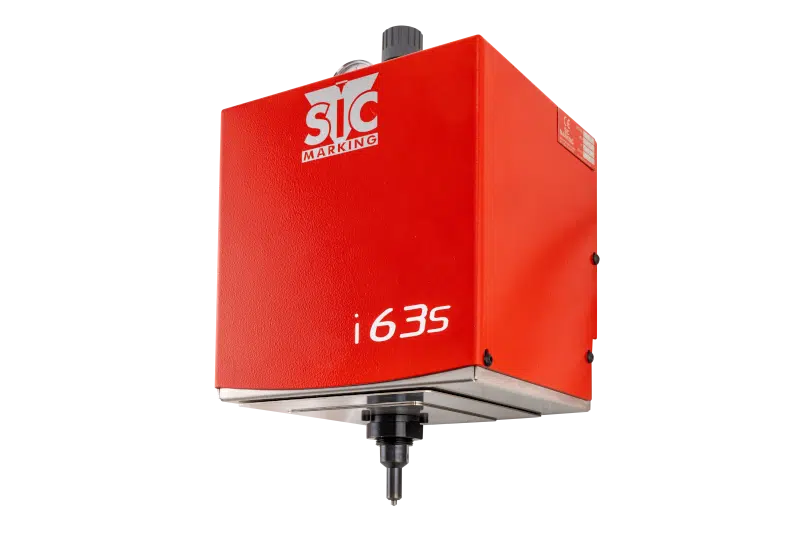

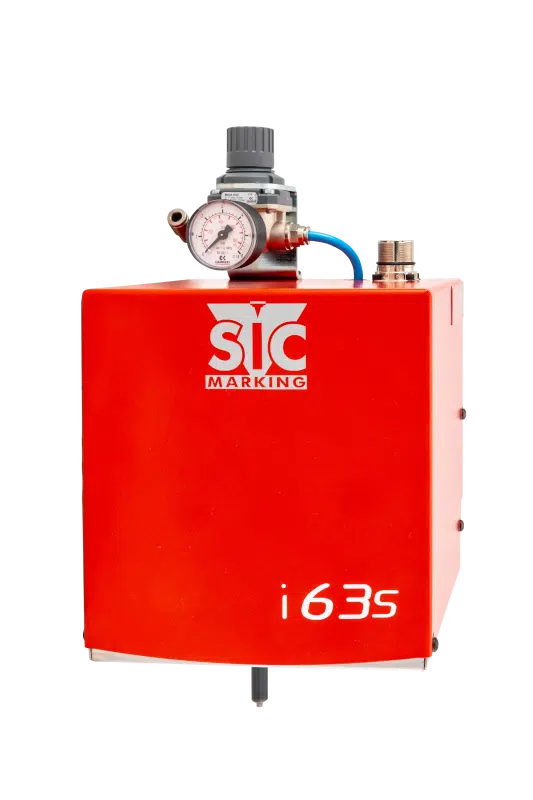

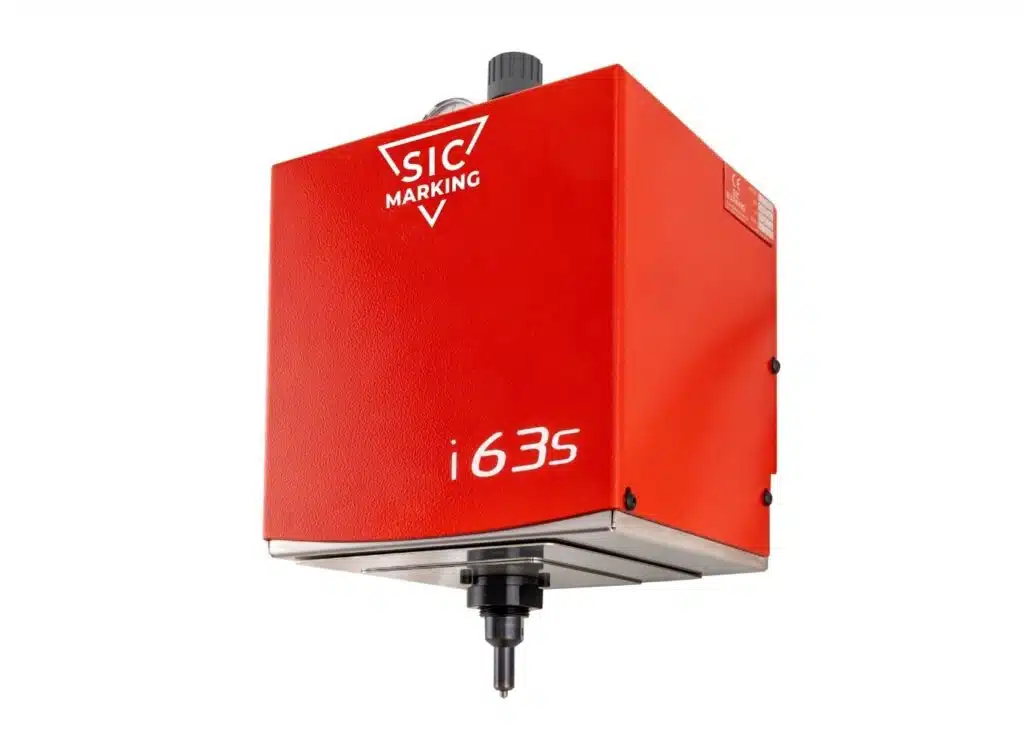

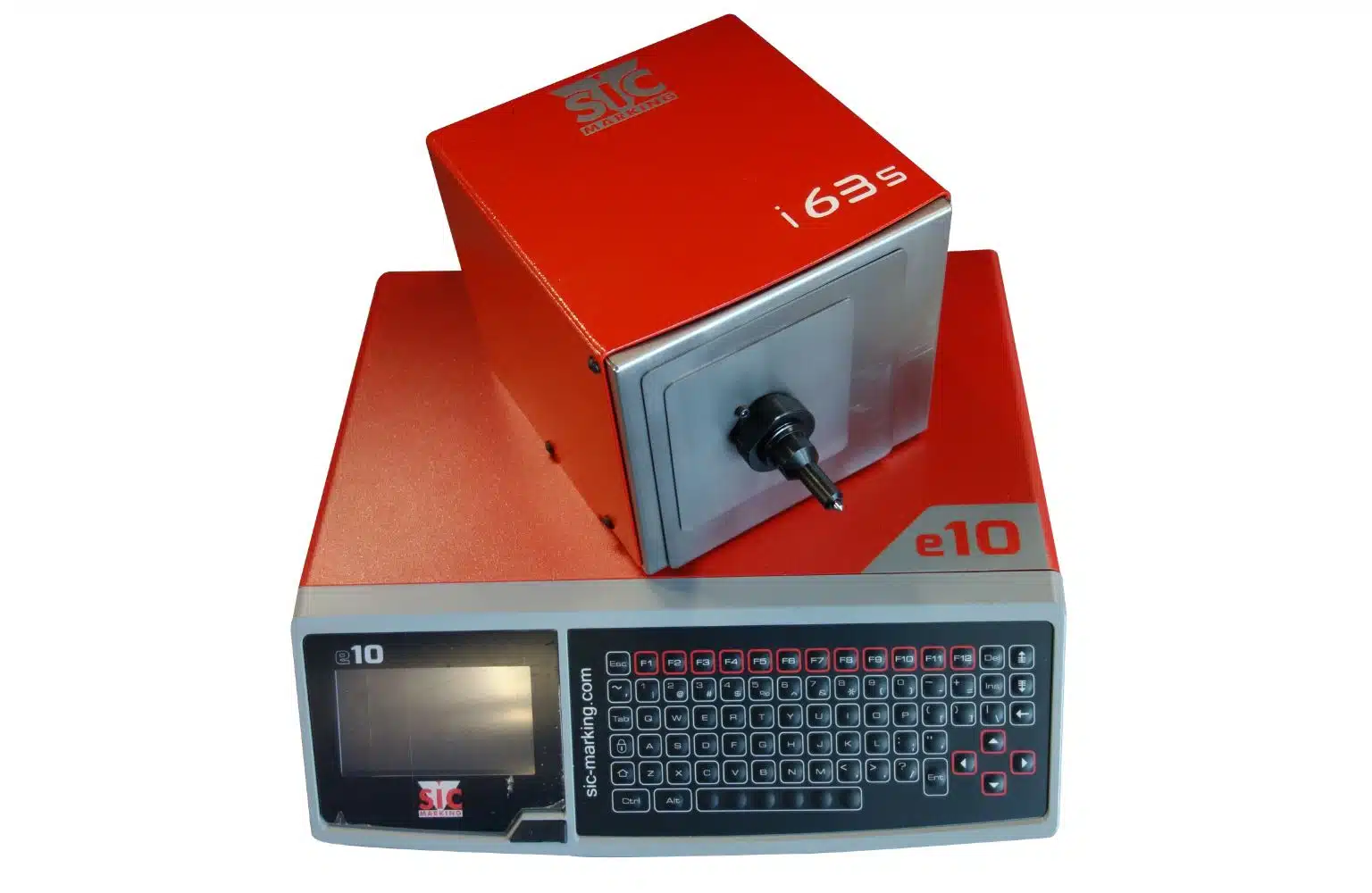

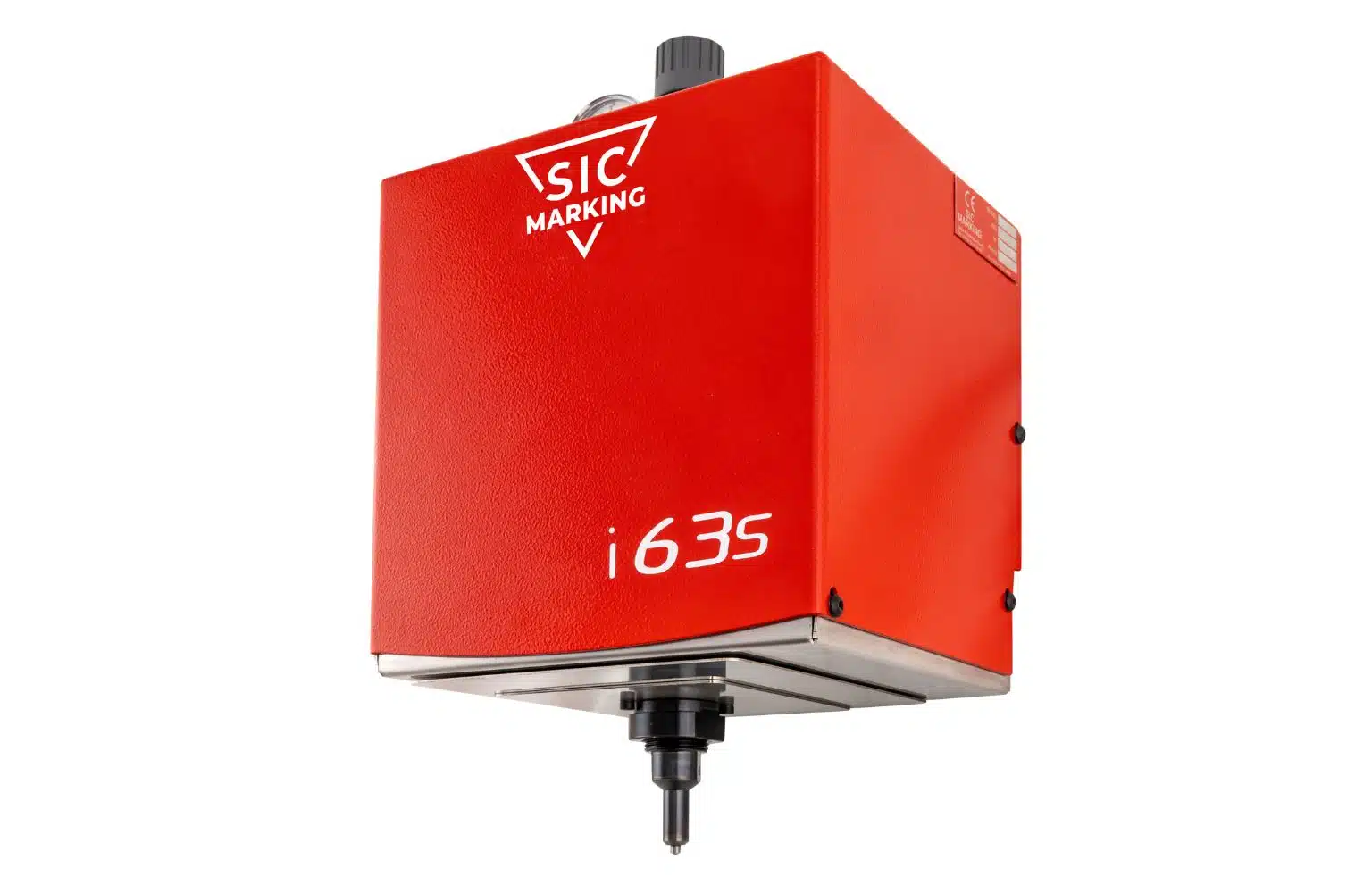

The E10R I 63S is a particularly compact scribe marking machine that can easily be integrated into a production line.

Scribing is a marking technology that is quieter than dot peening.

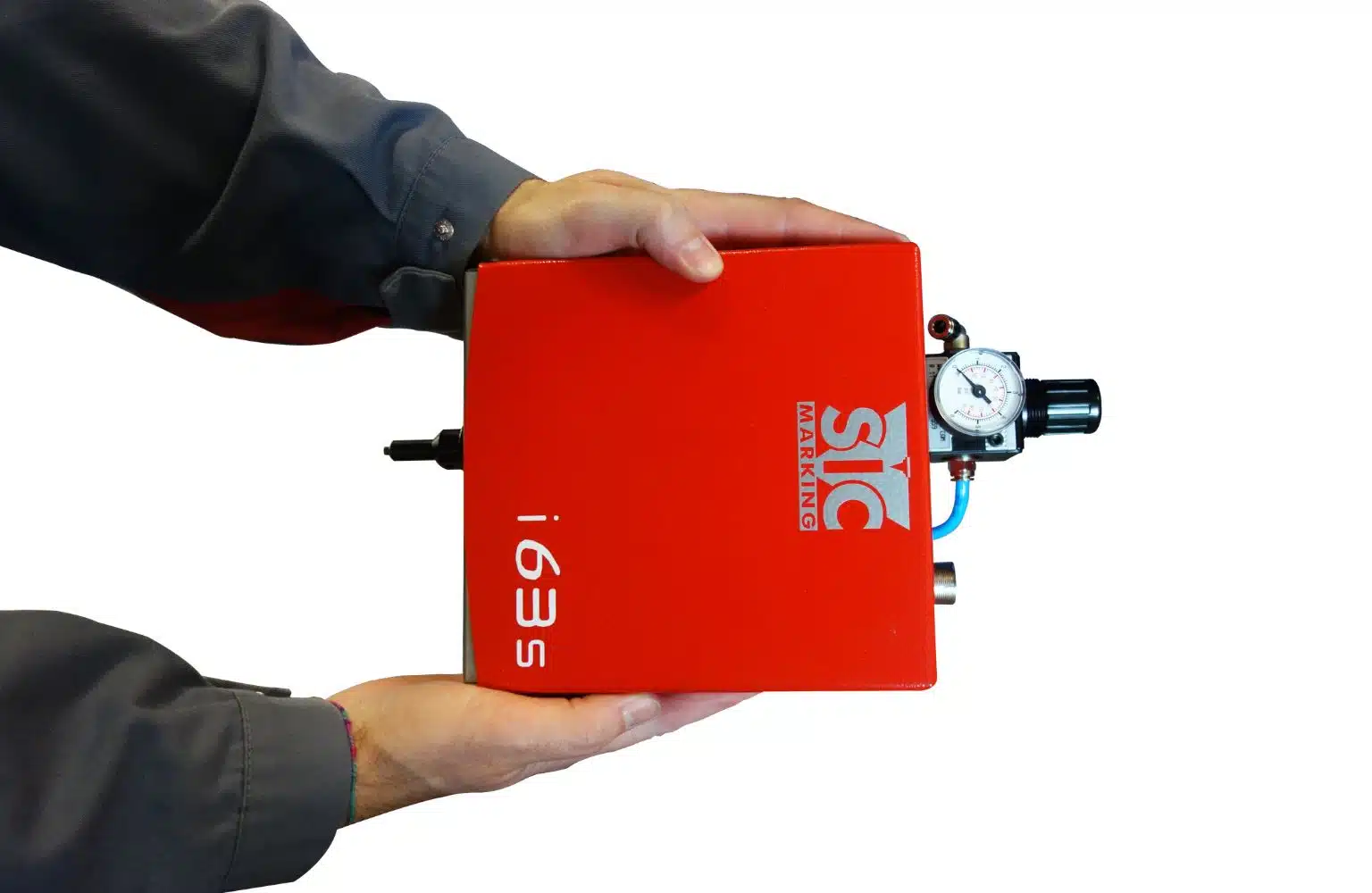

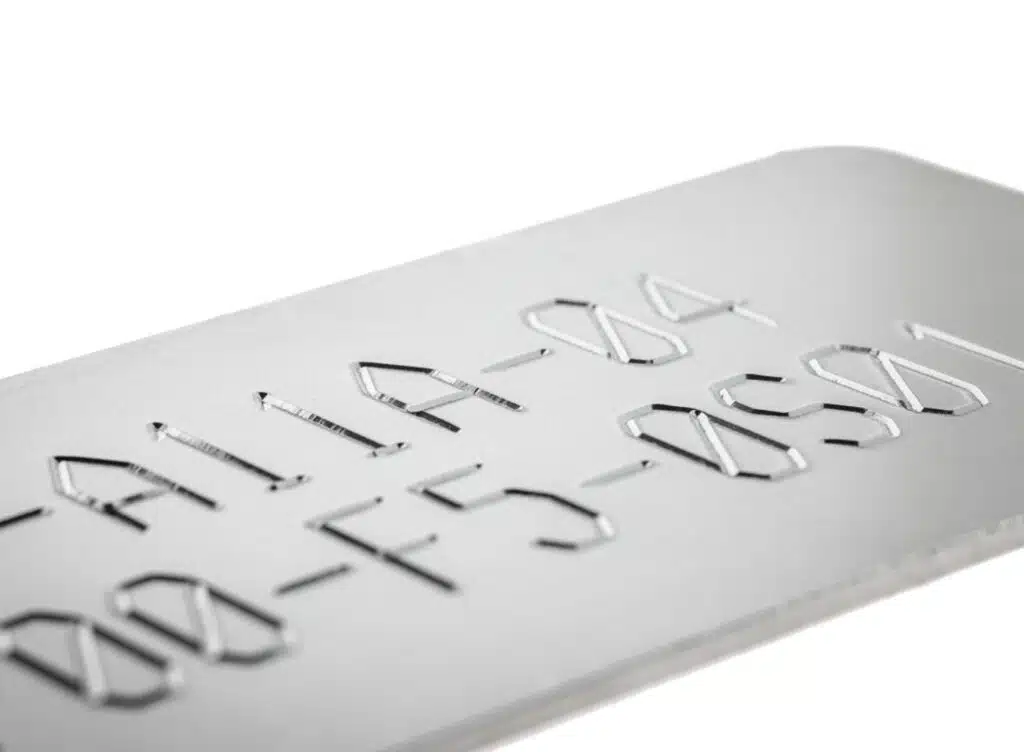

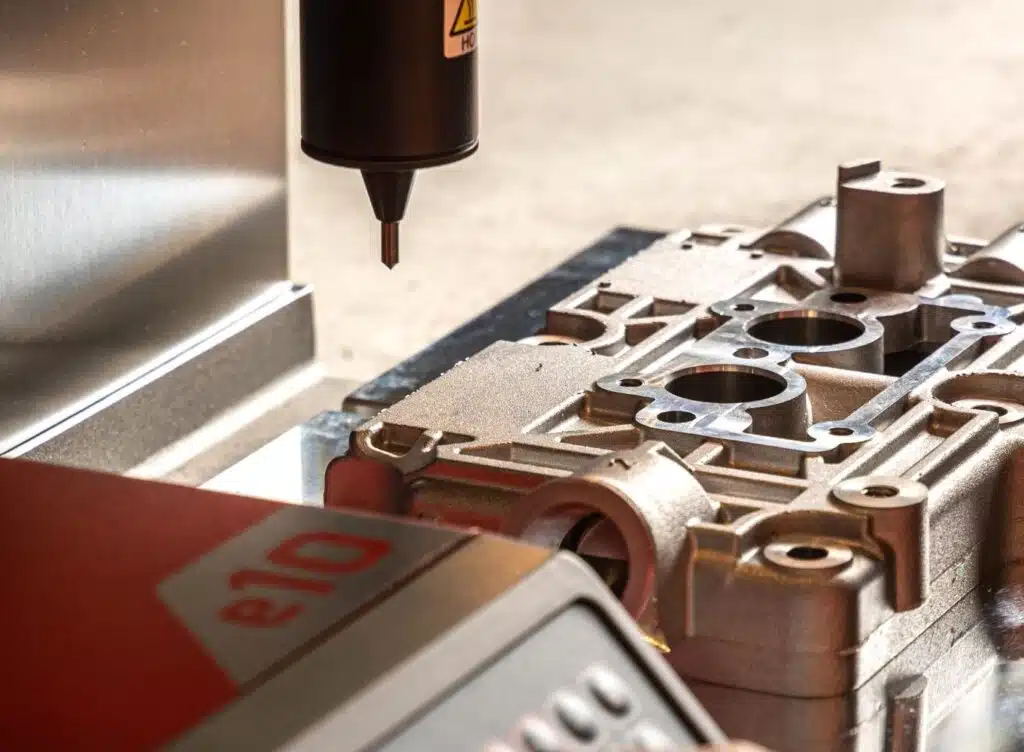

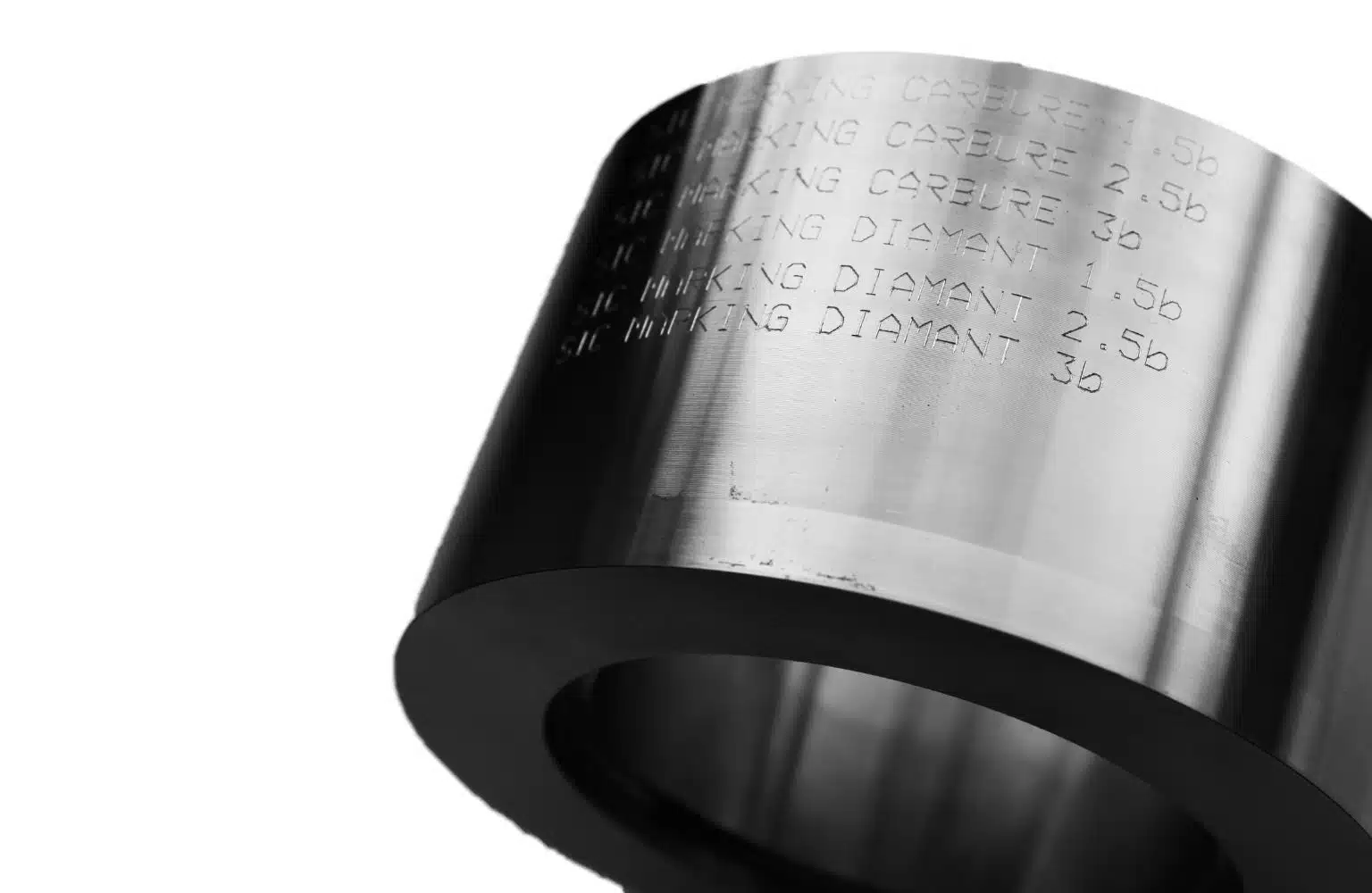

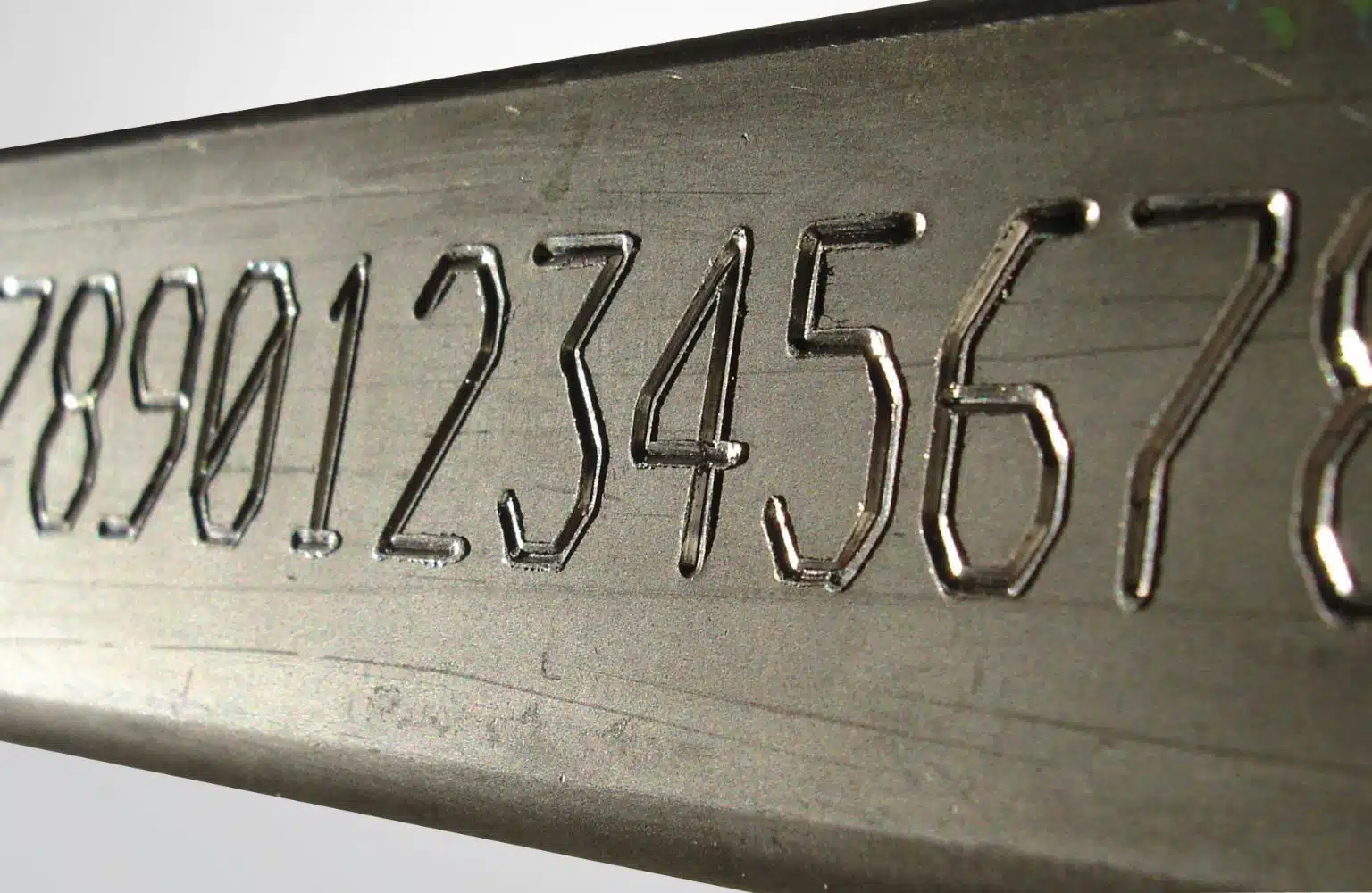

The I63S is powerful and is therefore ideal for DEEP SCRIBING ON ALL TYPES OF MATERIAL.

The robust structure of the I63S is protected against projections by stainless steel bellows and a full cowling. The machine can therefore be integrated into DIFFICULT ENVIRONMENTS and operate at HIGH RATES.

Its easy integration and programming make it very simple to use. Utilisation cost is low as no maintenance or consumables are needed.

The power of the integral software makes it a high performance unit.

Mechanical specifications

Marking window

60 x 30 mm

Weight

7.8 kg

Dimensions

160 x 170 x 340 mm

Stylus

Carbide or diamond tip 60 mm

Connection cable

5 m

Max. working pressure

6 bar

Maximum stylus stroke

2 mm

Electronic specifications

Dimensions

112 x 380 x 222 mm or 140 x 380 x 222 mm with DIN rail kit (option)

Weight

5 kg

LCD screen

95 x 54 mm

Keyboard

Qwerty with waterproof membrane

Power

300 W

Power supply

Single phase, 90 to 240 V AC, 50-60Hz

Number of axes controlled

2 (3rd and 4th axis on option)

Control software

Marking file capacity

More than 2000

Memory

7110 KB

Alphanumeric characters

Serial numbering, date/time tags

Logos

Creation from the PC software

Datamatrix

Up to 348 characters, 48 x 48 cells

Fonts

Arial, Courier, OCR and OCRA

Style

Angular, Radial, Inverted and Mirror

Rate

Up to 5 characters per second

Font size

From 0.1 mm to 99 mm

Impact force

9 levels

Depth

Up to 0.5 mm

Resolution between dots

0.05 mm

Maximum stylus stroke

Up to 8 mm

Personnel management

Maximum 10

Password protection

3 security levels

History function

Password protected

Maintenance aid

Self-Diagnostic component

Languages available

17

COMMUNICATION
Ports

RS232, RS422, USBx2, RS485, Profibus and Ethernet on option

Inputs/Outputs

16

Remote keyboard input

USB

External output

5V-0.5A and 24V-0.5A

Logos

Creation and transfer software

File saving on PC

PC software or USB memory stick

Database link

Option

Options

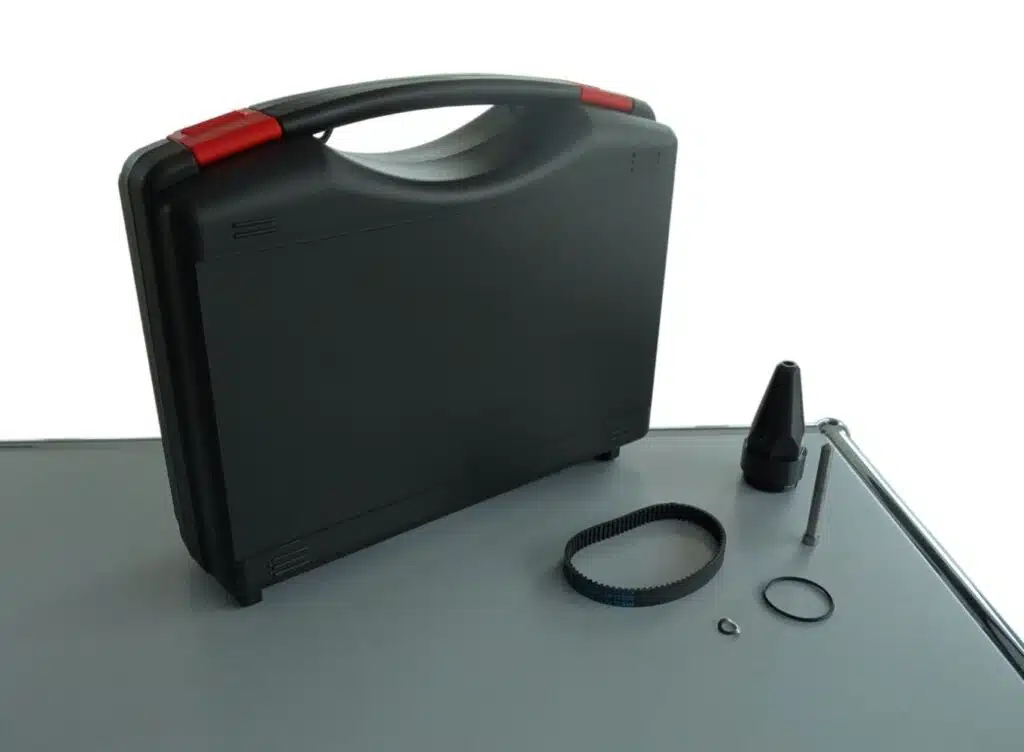

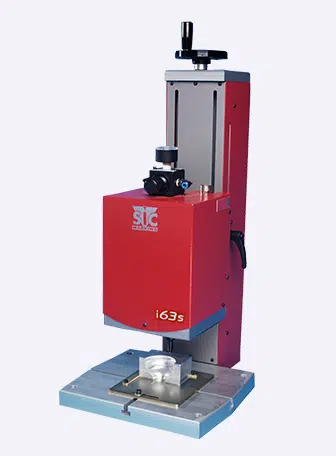

STRENGTHENED COLUMN BASE FOR LIGHT SCRIBING MACHINE

COMMUNICATION BOARDS

E10 R CONTROLLER
